Round Bottle Filling Machine
Technical Project:
- According to customer’s requirement, our engineer department present the following technical project—-LK-100 round bottle labeling machine, this machine adopts servo motor system, stable and reliable, main electrical components adopts famous international brand to ensure the stability of the machine. High labeling precision and efficiency.

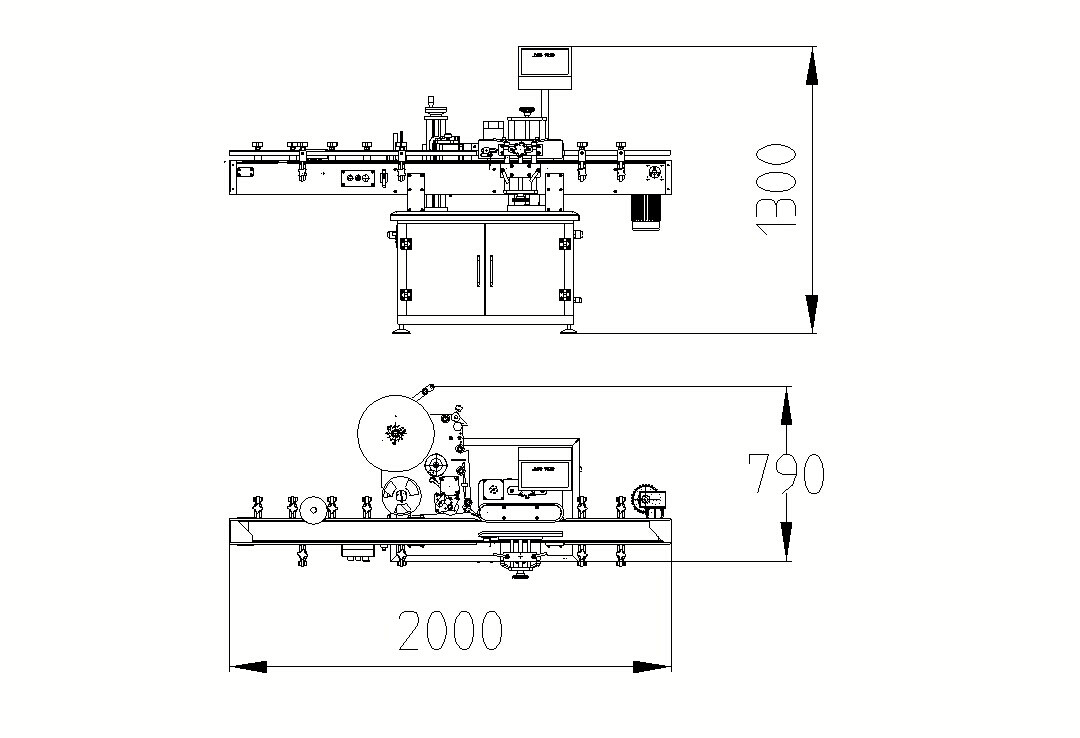

CAD drawing
Main performance features：
- 1.Applicable to label whole curved surfaces or half curved surfaces on rotundities from medicine, food, agrochemical and other industries.
- 2.Using well-known motor drive which ensures a stable and reliable label-feeding speed.
- 3.Advanced human-machine touch screen interface which is easy and and convenient to operate, with complete function and abundant online help.
- 4.Automatic photo-electrical sensor detection function and automatic stop or alarm when no labels, or faults with labels, avoid wasting labels or omitting labels.
- 5.Rotary rolling depression body adopting elastic sponge-covered belt makes the labels smoother, firm and with no wrinkles which enhances the packaging quality greatly.
- 6.Simple and compact machine structure makes it easy to operate and maintain.
- 7.You can also link the back part with assembly line or receiving platform which is convenient for collecting and packaging.
Technical parameter:
| Model / technical parameters | XT-2510 |
| Labeling speed （pcs/min） | 40-150 P/min (relate to material and label size) |
| Labeling accuracy（mm） | ±1.0mm (material and label sizes are not counted in) |
| Label size（mm） | （L）20-280mm （H）30-144mm |
| Material size （mm） | Φ20-φ100mm （H）40-200mm |
| Roll inside（mm） | φ76mm |
| Roll outerside diameter（mm） | (Max)Φ350mm |
| Machine size （mm） | （L）2000*（W）850*（H）1350(mm) |
| Power supply | AC220V 50Hz/60Hz 1500W |
